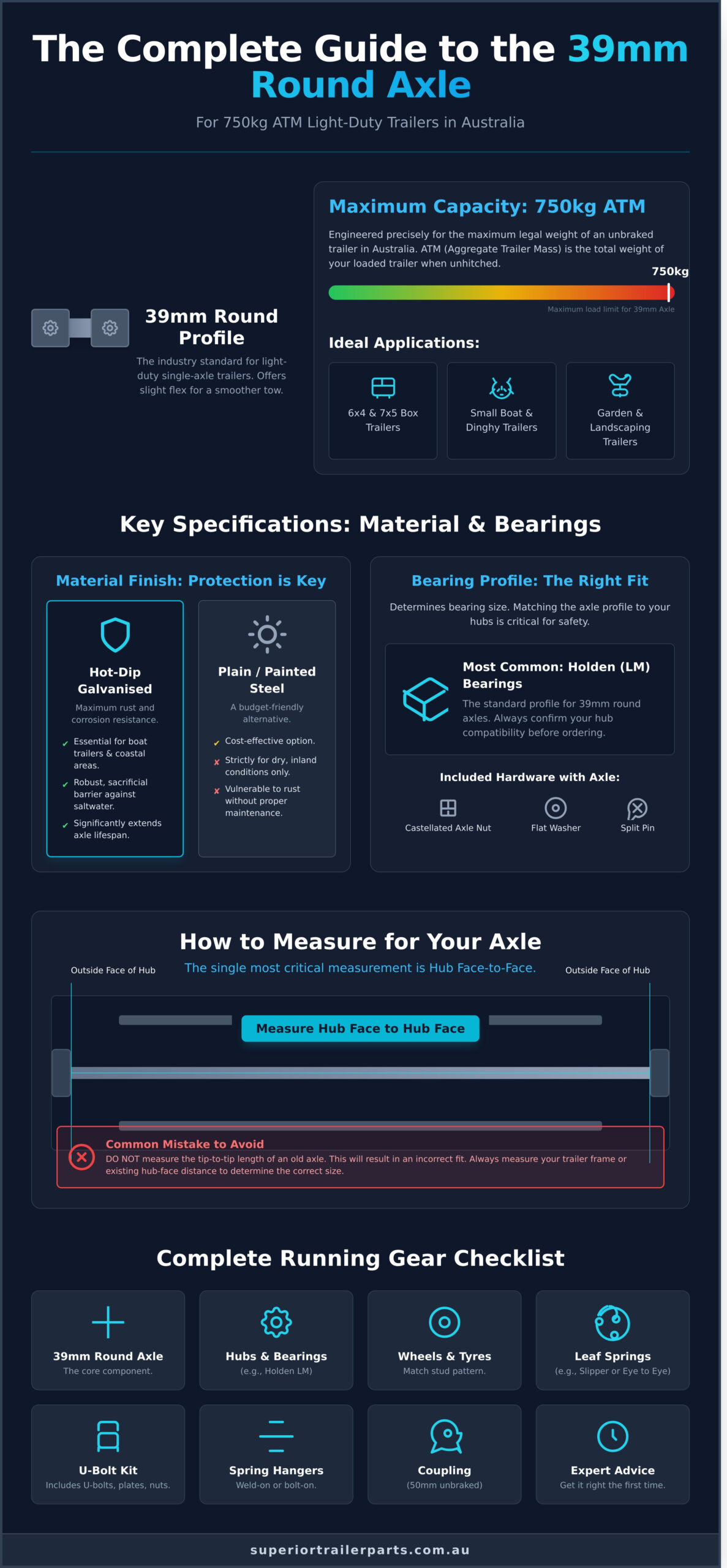

Your Guide to 39mm Round Axles: The 750kg Light-Duty Solution

Choosing the right axle for your light-duty trailer is critical. Get it wrong, and you waste time and money. Many trailer builders question if a 39mm round axle is truly strong enough for a 750kg Aggregate Trailer Mass (ATM). This uncertainty, combined with the risk of incorrect measurements and confusion over parts, stops good projects cold. We see it all the time.

This is your no-nonsense, expert guide to getting it right the first time. We cut through the confusion. You will learn how to confidently confirm a 39mm axle meets your 750kg needs. We provide a step-by-step process for measuring your trailer accurately, ensuring a perfect fit. Finally, you get a complete checklist of all the components you need-from bearings to u-bolts-for a full, reliable assembly. Get the job done with expert advice from a trusted Australian supplier.

What is a 39mm Round Axle & Its Ideal Application?

The 39mm round axle is the reliable workhorse for light-duty Australian trailers. It is the industry-standard component for single-axle setups designed for a specific, crucial weight class. At its core, an axle is the central shaft that mounts the wheels and bears the load of the trailer. For a foundational understanding of what is an axle?, its function is to maintain the wheel position and transfer weight to the suspension. This particular axle is engineered specifically for unbraked trailers with a maximum capacity of 750kg.

It is the go-to choice for many common trailer types across Australia, including:

• Small 6×4 or 7×5 box trailers for general-purpose hauling.
• Lightweight dinghy, tinny, and small boat trailers.
• Garden and landscaping trailers for domestic or light commercial use.

While a 40mm square axle offers greater rigidity for heavier loads, the 39mm round axle provides a more cost-effective solution for the light-duty category. It delivers the right amount of strength without unnecessary weight or expense, making it the smart, practical choice for trailers operating under the 750kg threshold.

Understanding the 750kg ATM Limit

Aggregate Trailer Mass (ATM) is the total weight of your fully loaded trailer when it’s unhitched from your vehicle. Under Australian road rules, 750kg is the maximum ATM a trailer can have without needing its own independent braking system. The 39mm round axle is built precisely for this application, providing reliable performance and full legal compliance for this popular and versatile trailer class.

Benefits of a Round Axle Profile

The round profile offers practical, real-world advantages. Its shape allows for a slight amount of flex, which helps absorb minor road shocks and vibrations, leading to a smoother tow and less stress on the trailer frame. Furthermore, its universal design means sourcing and fitting standard components like U-bolts and axle pads is straightforward and hassle-free. This axle type has a long history of proven reliability on Australian roads, making it a trusted and dependable choice for your build or repair.

Key Specifications: Galvanised vs. Plain Steel & Bearing Types

Selecting the right specifications for your trailer axle is not just about fitment-it’s about safety and longevity. The foundation of any reliable axle is the material itself. We use high-tensile steel for its superior strength and resistance to bending under load. This commitment to quality ensures our parts meet the rigorous expectations outlined in global manufacturing guidelines. From there, choosing the correct material finish and bearing profile ensures your setup is built to last.

Material Choice: Galvanised for Durability

For maximum rust and corrosion resistance, we strongly recommend a hot-dip galvanised finish. This is not a luxury; it is essential for boat trailers or any trailer operating in coastal and high-humidity Australian environments. The thick galvanised coating provides a robust, sacrificial barrier against saltwater and atmospheric corrosion, preventing premature failure. A plain or painted steel axle is a budget-friendly alternative, but it is strictly suitable for dry, inland conditions where rust is not a persistent threat.

Choosing Your Bearing Profile: Holden vs. Ford

The terms ‘Holden’ and ‘Ford’ refer to standard Australian bearing profiles, determining the size of the inner and outer bearings. A 39mm round axle is typically machined to suit a specific bearing set. The most common profile for this axle size is Holden, also known as LM bearings. It is absolutely crucial to match the axle’s bearing profile to your trailer hubs to ensure a secure fit and safe operation. Always check your existing hubs or select new ones that correspond to the Holden (LM) standard before purchasing.

A pre-machined axle from Superior Trailer Parts arrives ready for immediate installation with all necessary high-quality hardware. This saves you time and eliminates guesswork. Each axle kit includes:

• One Castellated Axle Nut: For precise bearing pre-load adjustment.
• One Flat Washer: To distribute pressure evenly.
• One Split Pin: To securely lock the castellated nut in place.

Getting these specifications right from the start guarantees a secure, low-maintenance, and dependable foundation for your light-duty trailer.

How to Measure for a 39mm Axle: A Step-by-Step Guide

Ordering the correct axle starts with accurate measurements. An incorrect fit can lead to poor towing performance, premature tyre wear, and serious safety issues. The single most critical measurement you need is the ‘hub face-to-face’ distance. This is the total length from the outside face of one hub to the outside face of the other, where the wheel studs are located.

A common mistake is measuring the tip-to-tip length of an old axle. This will give you an incorrect dimension. Always measure the trailer frame to determine the correct size for your new 39mm round axle.

Step 1: Measuring Your Chassis

Start with the trailer frame itself. Use a tape measure to find the width across the outside of the main chassis rails where your springs are mounted. This is your base measurement. From here, you must account for adequate clearance between the inside wall of your tyre and the chassis. A minimum of 25mm clearance is recommended to prevent rubbing, but more may be needed depending on your setup. Your wheel’s offset or backspace will determine the final hub face position.

Step 2: Confirming Spring Centre Measurements

The next vital measurement is the distance between the centres of your leaf springs. Measure from the centre of the bolt on one spring to the centre of the bolt on the opposite spring. This dimension determines exactly where the spring pads will be welded onto the axle beam. Getting this right ensures the axle bolts directly onto your existing suspension without modification. If your measurements are non-standard, custom-built axles are a reliable solution.

Common Measurement Mistakes to Avoid

Precision is key. Follow the ‘measure twice, order once’ principle to save time and money. Avoid these common errors:

• Measuring a Bent Axle: An old axle may be bent or worn from years of use. Relying on it for measurements will result in an incorrect replacement. Always measure the trailer frame.
• Guessing Tyre Clearance: Do not estimate the space needed between the tyre and the frame. Factor in suspension travel and body roll under load.
• Forgetting Hub Dimensions: The hub face-to-face length is the goal. Simply providing a chassis width is not enough information to build the correct axle.

If you’re unsure about your measurements, don’t risk it. Contact our experts if you’re unsure about your measurements. We provide the expert advice you need to get the job done right the first time.

The Complete 39mm Axle Assembly: What Else Do You Need?

A 39mm round axle is the backbone of your light-duty trailer’s running gear. But it does not work alone. To get your trailer on the road safely and legally, you need a complete system of reliable components designed to work together. This ensures load distribution, smooth suspension, and road compliance. At Superior Trailer Parts, we stock every part you need to build a durable assembly from the ground up, eliminating guesswork and saving you time.

Here is a practical checklist of the essential hardware required to complete your installation.

Suspension Components

The suspension system connects your axle to the trailer frame, absorbing road shock and keeping your load stable. For a 750kg setup, these are the standard parts:

• Leaf Springs: 4 or 5-leaf slipper springs are the typical choice for this load capacity. They provide the necessary support and flex for a smooth ride. Choosing the correct spring is critical for performance.
• U-Bolts & Fish Plates: These parts are non-negotiable for safety. Heavy-duty Trailer U-Bolts clamp the axle firmly to the leaf springs, while fish plates spread the clamping force to prevent damage. Always use new U-bolts for any new installation.
• Hangers & Bolts: You will need a full set of spring hangers, dumb jacks, and high-tensile bolts to securely mount the entire suspension system to your trailer’s chassis. We supply complete, galvanised kits for maximum corrosion resistance and longevity.

Wheel & Hub Assembly

Once the suspension is sorted, you need the right components to get your wheels turning. Everything must match to ensure correct fitment and safe operation.

• Hubs: For a 750kg ATM trailer, you will need unbraked hubs. Ensure they match your axle’s bearing profile (typically Slimline/Ford or Holden) and your desired wheel stud pattern (e.g., 5-stud Ford).
• Bearings, Seals & Dust Caps: A complete bearing kit is the most efficient solution. It includes inner and outer bearings, a marine-grade seal to keep grease in and water out, and a dust cap for final protection. This is vital for hub longevity.
• Wheels & Tyres: Select wheels with the correct stud pattern to match your hubs. Crucially, check that both the wheels and tyres have a load rating that meets or exceeds your trailer’s 750kg Aggregate Trailer Mass (ATM).

Building a full running gear system around your 39mm round axle is straightforward with the right parts. We provide everything you need in one place, backed by expert advice. Get your project rolling by browsing our full range at superiortrailerparts.com.au.

Why Source Your 39mm Axle from Superior Trailer Parts?

Choosing the right 39mm round axle is a critical decision for your trailer’s safety, performance, and longevity. Just as important is choosing a supplier you can depend on for quality parts and expert guidance. At Superior Trailer Parts, we provide more than just components; we deliver the reliability and practical support that keeps your trailer rolling.

Australian Quality & Expertise

As a proudly Australian-owned and operated company, we have a deep understanding of the demanding conditions our products face. From corrugated outback roads to salty coastal air, our equipment is built to last. Our 39mm round axles are engineered using high-tensile Australian steel, ensuring they meet or exceed strict national standards for strength and durability. When you call us, you’re not just talking to a salesperson; you’re getting no-nonsense, practical advice from a team that knows trailer parts inside and out. We help you get the right fit for your specific build or repair, first time.

Your One-Stop Shop for Trailer Running Gear

Simplify your project and eliminate compatibility issues by sourcing all your running gear from one reliable place. We stock the complete package required for a 750kg ATM setup, ensuring every component works together seamlessly. This saves you valuable time and the frustration of matching parts from different suppliers. Our range includes:

• Axles: A wide selection of standard lengths and custom-made options.
• Springs: Slipper and eye-to-eye springs to suit your load requirements.
• Hubs & Bearings: Pre-greased and assembled hubs in popular stud patterns.
• U-Bolts & Fittings: All the necessary hardware to secure your axle correctly.

With fast, Australia-wide shipping from our Queensland warehouse and competitive pricing on all components, we offer unmatched value. Get the job done right with genuine, reliable parts from a trusted source.

Shop our full range of 39mm round axles and kits online now.

Your Next Step: Equip Your Trailer for Performance

The 39mm round axle is your go-to solution for any light-duty trailer build or repair up to 750kg. As we’ve covered, success hinges on the details-from selecting the right material like galvanised steel to taking precise measurements for a perfect fit. A well-chosen axle assembly is the foundation of a safe and reliable trailer ready for tough Australian conditions.

When you’re ready to get the job done, trust an expert supplier. Superior Trailer Parts is a proud Australian Owned and Operated business committed to quality. We provide more than just parts; we offer the expert advice you need to select the right components. With fast, Australia-wide shipping, you can get back on the road without delay.

Frequently Asked Questions

What is the maximum load rating of a 39mm round axle?

The maximum load rating for a standard 39mm round axle is 750kg Gross Trailer Mass (GTM). This rating makes it the ideal, reliable solution for light-duty single-axle trailers like small box trailers, tinny trailers, or camper trailers. Exceeding this weight limit is unsafe and against Australian regulations. For heavier loads, you must upgrade to a heavier-duty axle, such as a 40mm or 45mm square axle.

Can you put brakes on a 39mm round axle?

No, you cannot fit brakes to a 39mm round axle. These axles are engineered specifically for unbraked applications up to 750kg GTM, which is the legal limit for unbraked trailers in Australia. If your trailer’s GTM exceeds 750kg, you are legally required to have brakes. This requires upgrading to a heavier-duty axle designed with machined mounts to accommodate brake assemblies, like a 45mm square axle.

What is the difference between a 39mm round axle and a 40mm square axle?

The primary difference is load capacity and profile. A 39mm round axle is rated for light-duty use up to 750kg, while a 40mm square axle is a medium-duty option typically rated between 1000kg and 1400kg. The round profile is suited for simple, unbraked setups. The square profile provides greater rigidity and strength under load, making it the correct choice for heavier applications like tradie trailers or braked systems.

How do I know if I need a Holden (LM) or Ford (Slimline) bearing axle?

The choice depends on your trailer’s required load capacity. Holden (LM) bearings are suited for loads up to 750kg, making them the standard, dependable fitment for 39mm round axles. Ford (Slimline) bearings are a heavier-duty option for loads up to 1450kg and are used on larger axles. If you are replacing an existing axle, check the numbers stamped on your old bearings to confirm the correct profile for your setup.

Do your axles come with axle nuts and split pins included?

Yes, all our axles are supplied as a complete assembly, ready for installation. Each axle comes with a high-tensile castellated axle nut, a flat washer, and a split pin for each side. We provide everything you need to secure your hubs for a safe, hassle-free fitment. This gets you back on the road faster without needing to source extra parts for the job.

How long does it take to get a custom-length axle made?

Our custom-length axles are manufactured right here in Australia. The typical lead time is 2-3 business days from when you confirm your order. We pride ourselves on a fast, efficient turnaround to minimise your downtime. During peak periods, this may extend slightly, but our team works hard to get your custom axle dispatched as quickly as possible. Contact us for the current manufacturing schedule.

What size U-bolts do I need for a 39mm round axle?

To securely mount a 39mm round axle to your springs, you will need 40mm round U-bolts. Although the axle diameter is 39mm, the 40mm U-bolt provides the correct, secure fit. The required U-bolt length depends on the thickness of your leaf spring pack and whether a mounting plate is used. Measure your spring pack height to ensure you order the correct length for a firm and safe installation.
