Most tandem trailers fail on corrugated Australian roads because their suspension cannot actually share the load. You’ve probably felt that jarring bounce behind your vehicle or noticed your front tyres scrubbing while the rear ones stay fresh. It’s a common frustration for anyone hauling heavy equipment or caravans across the country. Choosing high-quality rocker roller spring sets is the most effective way to solve these mechanical headaches and improve your towing performance.
We know that navigating technical specifications is confusing, especially when you’re trying to balance leaf counts with actual weight capacity. Discover how rocker roller spring sets provide superior load sharing and towing stability for heavy-duty Australian trailers. You’ll learn how to achieve a smoother towing experience, extend the lifespan of your tyres, and maintain full compliance with Australian Design Rules. We provide a clear breakdown of the hardware you need to keep your trailer level and your cargo secure on every journey.
Key Takeaways
- Understand how the central pivoting rocker distributes weight evenly between axles to reduce tyre wear and improve braking stability.
- Learn how to select the correct leaf count and spring thickness for specific load capacities ranging from 2000kg up to 4500kg.
- Identify the critical installation requirements for rocker roller spring sets, including the precision needed for hanger spacing and rocker geometry.
- Discover why heavy-duty 60mm wide springs and high-tensile steel components are necessary for enduring harsh Australian road conditions.
- Gain clarity on maintaining compliance with Australian Design Rules and ensuring your tandem trailer is legally rated for heavy loads.

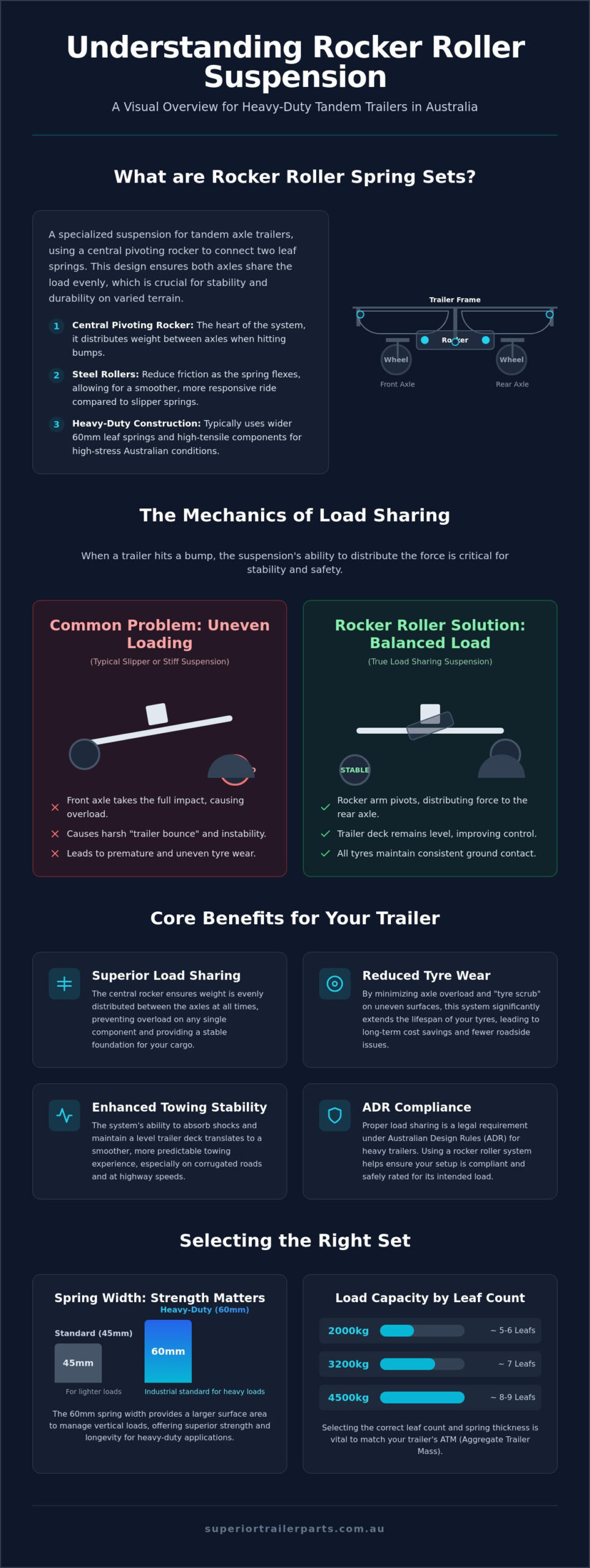

What are Rocker Roller Spring Sets?

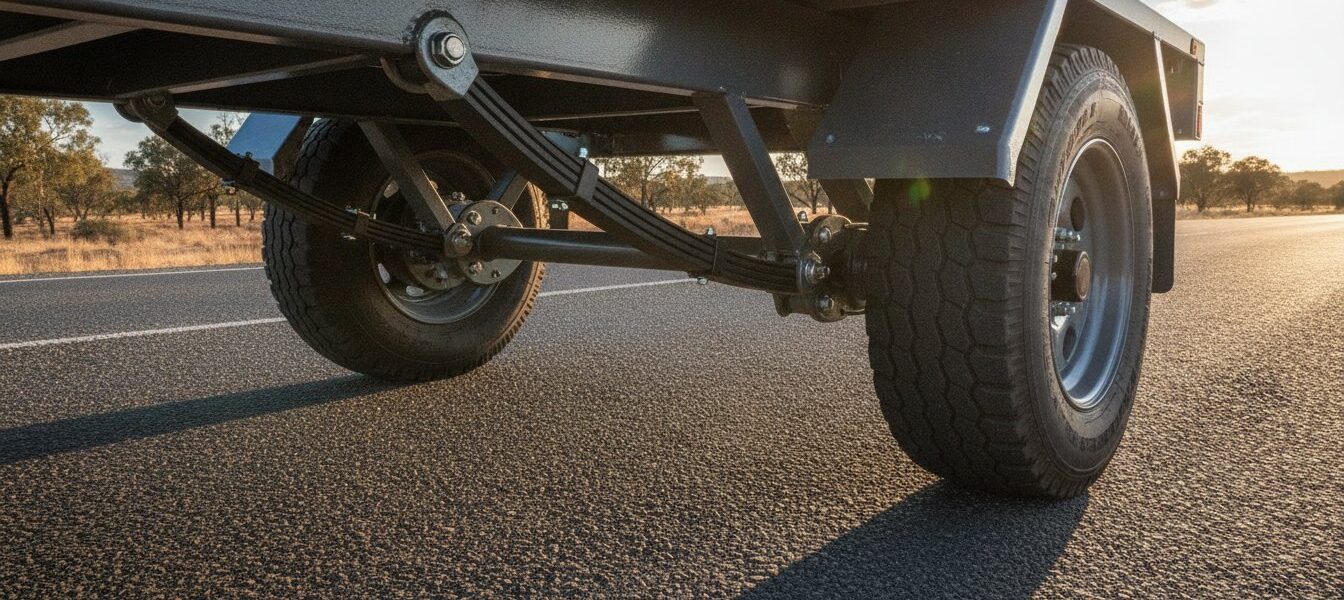

A rocker roller system is a specialized suspension setup designed for heavy-duty trailers. It uses a central pivoting rocker to connect two individual leaf springs. This design is specifically engineered for a Tandem Axle configuration where load sharing is the priority. Using high-quality rocker roller spring sets allows each axle to move independently while maintaining a constant, balanced connection to the trailer frame. This setup is the industrial standard for trailers that need to carry significant weight across varied terrain.
The “roller” feature is what distinguishes rocker roller spring sets from standard mechanical suspension. Instead of a fixed eye or a sliding tail that grinds against a hanger, the spring end features a steel roller. This roller moves within the rocker assembly as the spring compresses and expands. It reduces friction significantly during travel and prevents the binding that often occurs in basic slipper springs. By eliminating this resistance, the suspension reacts faster to road irregularities, which protects both the trailer and its cargo.
These systems are primarily used in applications where stability is non-negotiable. You will find them on horse floats, heavy-duty car trailers, and large caravans. They’re built to handle the high-stress environment of Australian highways and corrugated regional tracks where lesser suspension systems often fail.
The Components of a Rocker Roller System
A standard assembly consists of a heavy-duty rocker arm, a centre hanger, and high-tensile shackle pins. The leaf pack construction typically uses 60mm wide steel. This width is a major upgrade over the 45mm springs found on lighter trailers, providing a larger surface area to manage vertical loads. Greaseable bolts are a critical part of this system. They allow you to maintain lubrication at the pivot points, which is vital for preventing premature wear on the bushes and pins. You can find these high-performance components in our range of leaf springs designed for local conditions.
Rocker Roller vs. Slipper Tandem Suspension
Slipper springs are a budget-friendly option, but they don’t offer the mechanical advantage of a pivoting rocker. In a rocker roller setup, when the front wheel hits a bump, the rocker pivots to transfer part of that energy to the rear axle. This ensures even weight distribution across both axles at all times. Slipper systems often leave a single axle carrying the entire load momentarily, which leads to harsh impacts and potential chassis damage. While rocker rollers require more regular maintenance, they provide far better protection for the trailer structure and significantly increase the lifespan of your tyres.
The Mechanics of Load Sharing and Stability
The mechanical advantage of rocker roller spring sets lies in their ability to synchronize the movement of two separate axles. Unlike independent setups, this system uses a central pivot point to create a load-sharing environment. When the trailer is under load, the rocker arm balances the forces between the front and rear springs. This synchronization is critical for meeting Australian Design Rules (ADR) for heavy trailers, particularly those with an Aggregate Trailer Mass (ATM) over 3,000kg. Proper load sharing ensures that neither axle is forced to carry a disproportionate amount of weight during travel. Without this mechanism, a single axle might bear the full weight of the load when crossing an obstacle, potentially exceeding its legal and physical capacity.
Towing on Uneven Surfaces
Road conditions in regional Australia are often unpredictable. When one wheel of a tandem trailer hits a pothole or climbs a kerb, the rocker arm immediately pivots. This movement forces the opposite wheel down, maintaining consistent contact with the road surface. By distributing the vertical force across both axles, the system prevents a single axle from overloading. This mechanical response keeps the trailer deck level and stable. It prevents the sudden weight shifts that cause “trailer bounce,” which can lead to a loss of vehicle control on high-speed roads. Maintaining a level deck also protects your cargo from the violent vertical accelerations common with static suspension.
Tyre Wear and Maintenance Savings
Uneven loading is the primary cause of premature tyre failure in tandem configurations. Standard suspension systems often cause “tyre scrub,” where the tyres are dragged across the pavement during turns or over bumps because the axles aren’t sharing the weight correctly. rocker roller spring sets minimize this friction by allowing the axles to track more accurately. This even distribution also improves braking efficiency. When all four tyres maintain consistent ground pressure, your electric drum or hydraulic brakes can grip the road effectively without locking up a single axle. This prevents flat-spotting and ensures shorter, safer stopping distances when hauling heavy machinery or livestock.
Effective load sharing through a pivoting rocker significantly reduces the structural stress transferred to the trailer frame during transit. If you are planning a full suspension overhaul to improve your trailer’s performance, consider pairing these sets with our heavy-duty axles to ensure maximum durability and roadworthiness.
Selecting the Right Set: Leaf Count and Capacity
Choosing rocker roller spring sets requires a precise match between your trailer’s Gross Trailer Mass (GTM) and the suspension’s rated capacity. It isn’t just about buying the strongest set available. You must align the leaf capacity with your trailer axles and braking system to ensure the whole unit works as a synchronized assembly. Standard sets in the Australian market typically cater to 2000kg, 3000kg, 3500kg, and 4500kg ratings. Selecting a set that is too stiff for your actual load will result in excessive vibration, which can lead to structural cracks in the chassis over time.
Leaf thickness is a major factor in ride quality. Most heavy-duty springs use 60mm wide steel with a thickness of 6mm or 7mm. While thicker leaves increase the weight capacity, they also reduce the flexibility of the spring. This is a critical trade-off. A 9-leaf set designed for a 4500kg load will provide a very harsh ride if the trailer is frequently towed empty or with light loads. Conversely, under-specifying your leaf count leads to spring fatigue and potential failure on corrugated roads. Always calculate your maximum expected load before finalizing your selection.
Matching Wheel Sizes (14″ vs 16″)
Wheel diameter significantly impacts suspension geometry. A trailer running 14-inch wheels has different clearance requirements than one on 16-inch wheels. Standard rocker roller assemblies are often built to specific lengths to accommodate these differences. If you’re building a trailer with 16-inch wheels, you need to ensure the hanger spacing allows for adequate guard clearance during full suspension compression. Incorrect geometry can cause the tyre to strike the wheel arch when the rocker pivots over a large bump. Always verify the physical dimensions of the rocker arm and hangers to suit your chosen tyre height.
Leaf Count Breakdown
Matching the leaf count to your GTM ensures the suspension operates within its optimal range. Use the following breakdown as a general guide for tandem setups:
- 5-Leaf Sets: These are ideal for trailers rated between 2000kg and 2500kg. They provide a balanced ride for lighter tandem applications like furniture vans or small car trailers.
- 7-Leaf and 8-Leaf Sets: This is the industry standard for trailers in the 3000kg to 3500kg range. Most medium-sized caravans and horse floats utilize this configuration for reliable load sharing.
- 9-Leaf Sets: Reserved for heavy-duty 4000kg to 4500kg applications. These are essential for plant trailers hauling heavy machinery or large equipment where maximum durability is required.
When you upgrade your suspension, it’s also the right time to inspect your hardware. Ensuring you have high-quality u-bolts and greaseable shackle pins will maximize the lifespan of your new spring set.
Installation and Maintenance Requirements
Proper installation of rocker roller spring sets is vital for road safety and suspension longevity. You need heavy-duty jacks, rated stands, and a calibrated torque wrench to complete the job correctly. Precision is required for hanger spacing. If the hangers are too close or too far apart, the rocker geometry will fail. This leads to restricted movement and potential spring breakage under load. Never attempt this installation with standard car jacks; always use equipment rated for the trailer’s total weight.
You must replace your U-bolts every time you install new springs. U-bolts are designed to stretch slightly when torqued to ensure a secure clamp. Reusing old bolts increases the risk of the axle shifting during transit. Before you finalize the installation, check that the rocker arm has a full range of motion without hitting the chassis rail. Any contact between the suspension and the frame will cause harsh vibrations and structural damage.
Step-by-Step Installation Guide
- Clean the chassis rail thoroughly before welding the centre and outer hangers. Ensure they are perfectly square to the frame to prevent crabbing.
- Assemble the rocker arm and leaf springs using greaseable shackle pins. The roller end of the spring must sit correctly within the rocker housing to allow for expansion.
- Align the axles by measuring from the coupling to the axle centres on both sides. The trailer must track straight to prevent premature tyre wear.
- Perform the final torquing of all nuts to the manufacturer’s specification. Apply high-pressure grease to all pivot points immediately after assembly.
Ongoing Maintenance Schedule
Maintenance prevents mechanical failure on the road. You should grease the shackle pins and the rocker centre every 5,000km or every six months. If you tow in dusty or wet environments, increase this frequency. Inspect the nylon or brass bushings for wear during every service. If you notice ovality in the bolt holes or thinning of the bushing walls, replace them immediately to maintain stability.
Check the leaf alignment regularly. Look for signs of fatigue, such as sagging or hairline cracks in the steel. A single cracked leaf compromises the entire rocker roller spring sets assembly. Keeping the pivot points lubricated and the bolts tight ensures your tandem suspension remains roadworthy for thousands of kilometres.
If you are starting a new build or upgrading an existing setup, browse our range of trailer parts to ensure you have the right hardware for a professional installation.
Sourcing Quality Tandem Suspension in Australia
Sourcing the right components is the final step in ensuring your trailer is roadworthy and durable. High-tensile steel is vital for Australian road conditions because it resists the metal fatigue caused by constant vibration on corrugated surfaces. When you buy rocker roller spring sets from an Australian-owned specialist like Superior Trailer Parts, you receive hardware engineered for local environments. We understand the specific stresses placed on tandem trailers in regional areas and stock components that meet national manufacturing standards. Choosing a local supplier also means your parts are designed to fit the standard axle sizes used across the country.
A complete suspension overhaul often involves more than just the springs. Bundling your new suspension with 10 Inch Electric Drum Brakes or matching square axles creates a safer towing platform. This integrated approach ensures that all components, from the rocker arm to the braking surface, are rated for the same load capacity. It simplifies the build process and guarantees compatibility between parts. Navigating nationwide shipping for heavy suspension components can be difficult, but we manage the logistics to ensure these bulky items reach your workshop efficiently.
Choosing Between Painted and Dacromet Finishes
Your choice of finish depends on the operating environment of your trailer. Standard painted finishes are a cost-effective solution for road-going trailers that are stored under cover. However, heavy-duty trailers stored outdoors or used in coastal regions benefit from premium coatings. Dacromet is a specialized zinc and aluminium flake coating that provides high-level corrosion resistance. If you tow near the ocean or in high-humidity areas, Dacromet-coated rocker roller spring sets will prevent rust from seizing the pivot points or compromising the leaf pack integrity.
Expert Support and Nationwide Delivery
Building or upgrading a tandem trailer requires technical precision. You must know the exact shackle pin diameters and hanger spacing for your specific GTM to ensure the geometry works correctly. We provide expert technical advice to help you select the right hardware for your project. This professional support is a primary benefit of sourcing from a dedicated trailer parts specialist. We offer reliable shipping to both metropolitan hubs and regional Australian towns. This accessibility ensures you can maintain or build your trailer regardless of your location.
View our range of rocker roller spring sets or contact us for technical specifications to ensure your tandem trailer is equipped for the road ahead.
Upgrade Your Tandem Trailer Suspension
Investing in high-quality suspension is the most effective way to improve your trailer’s performance and road safety. You now understand how rocker roller spring sets provide the mechanical synchronization needed to protect your chassis and tyres on harsh Australian roads. By matching your leaf count to your GTM and following a strict maintenance schedule, you ensure your trailer remains stable under load. Correct installation with fresh hardware prevents the structural failures that often plague standard slipper systems. These components are the industrial standard for anyone hauling heavy machinery, livestock, or large caravans across the country.
As an Australian-owned and operated specialist, we provide the technical support and durability your equipment requires. We offer nationwide shipping on all heavy-duty components to keep your project moving regardless of your location. Our team is ready to assist with technical specifications for both DIY builds and professional fleet upgrades. Shop Heavy-Duty Rocker Roller Spring Sets at Superior Trailer Parts today and experience a smoother, safer tow on your next journey.
Frequently Asked Questions
What is the advantage of rocker roller springs over standard leaf springs?
Rocker roller systems provide active load sharing, which is the primary advantage over static leaf springs. The central pivot balances the weight between axles on uneven ground, which significantly reduces tyre wear and structural stress. This mechanical synchronization ensures that no single axle carries the full weight when crossing obstacles. It results in a smoother ride and better braking efficiency compared to basic slipper tandem setups.
How do I determine the load rating I need for my tandem trailer?
Calculate your Gross Trailer Mass (GTM) by adding the empty trailer weight to your maximum legal cargo weight. You must choose a set that matches or slightly exceeds this total. For example, a trailer with a 3,500kg GTM requires an 8-leaf rocker roller set to ensure the suspension operates within its optimal range. Under-specifying your load rating will lead to spring fatigue and potential failure on regional roads.
Do rocker roller spring sets require regular greasing?
Regular lubrication is essential for rocker roller spring sets to prevent premature wear on the pivot points. You should apply high-pressure grease to the shackle pins and the rocker centre every 5,000km or every six months. If you frequently tow in dusty or wet environments, you’ll need to increase this frequency. Proper greasing maintains the range of motion and prevents the steel components from binding or grinding.
Can I install rocker roller suspension on a single-axle trailer?
No, these systems are specifically engineered for tandem or tri-axle configurations. A single-axle trailer doesn’t have the second spring required to utilize the central rocker arm mechanism. If you’re building a single-axle trailer, you should look at 5-leaf eye-to-eye springs or 4-leaf slipper springs instead. Rocker rollers rely on the interaction between two springs to achieve their load-sharing capabilities.
What wheel sizes are compatible with rocker roller sets?
Most sets are compatible with 14-inch and 16-inch wheels, but the hanger spacing must be adjusted based on tyre diameter. Larger 16-inch wheels require more guard clearance to allow for full suspension compression when the rocker pivots. Always verify the physical dimensions of the rocker arm before welding your hangers. This ensures the tyres won’t strike the wheel arches when navigating kerbs or potholes.
How do I know if my rocker bushings need replacing?
Visually inspect your bushings during every service for signs of ovality in the bolt holes or thinning of the walls. If you hear metal-on-metal grinding noises while towing, the bushings are likely worn through. You should also check for any lateral movement in the rocker arm assembly. Replacing bushings early prevents the shackle pins from damaging the more expensive rocker hangers or spring eyes.
Are these spring sets compliant with Australian Design Rules (ADR)?
High-quality rocker roller spring sets are compliant with Australian Design Rules (ADR) when they’re rated correctly for the trailer’s Aggregate Trailer Mass (ATM). Load-sharing suspension is a legal requirement in Australia for trailers with a GTM over 3,000kg. Using an ADR-compliant system ensures your trailer meets the national code of practice for safety and roadworthiness during heavy-duty transport.
Should I replace all springs at the same time on a tandem trailer?
You should always replace the entire set at once to maintain balanced suspension geometry and uniform tension. Installing a single new spring alongside old, fatigued ones will cause uneven load distribution across the axles. This imbalance leads to poor tracking and increased tyre wear on the stiffer side. Replacing all components simultaneously guarantees that the rocker mechanism can pivot effectively and share the load as intended.
